STATION WIRE (TIEV)
Attribute:
Telephone station wire (TIEV) with solid bare copper conductors, HDPE insulation and PVC jacket, for internal and external telephone system interconnection. Available in AWG 24 and AWG 22 with 2, 4 or 6 cores.
Categories : COMMUNICATION & COAXIAL CABLES ,
Brand : CC CENTURY CABLE
Share
Construction: Solid bare copper conductors, HDPE insulation, high-quality PVC jacket.
Conductor Size: AWG 24 (0.50 mm) and AWG 22 (0.65 mm).
Number of Cores: 2, 4 and 6 cores.
Insulation Colors: 2 cores: red, green / 4 cores: red, green, yellow, black / 6 cores: red, green, yellow, black, white, brown.

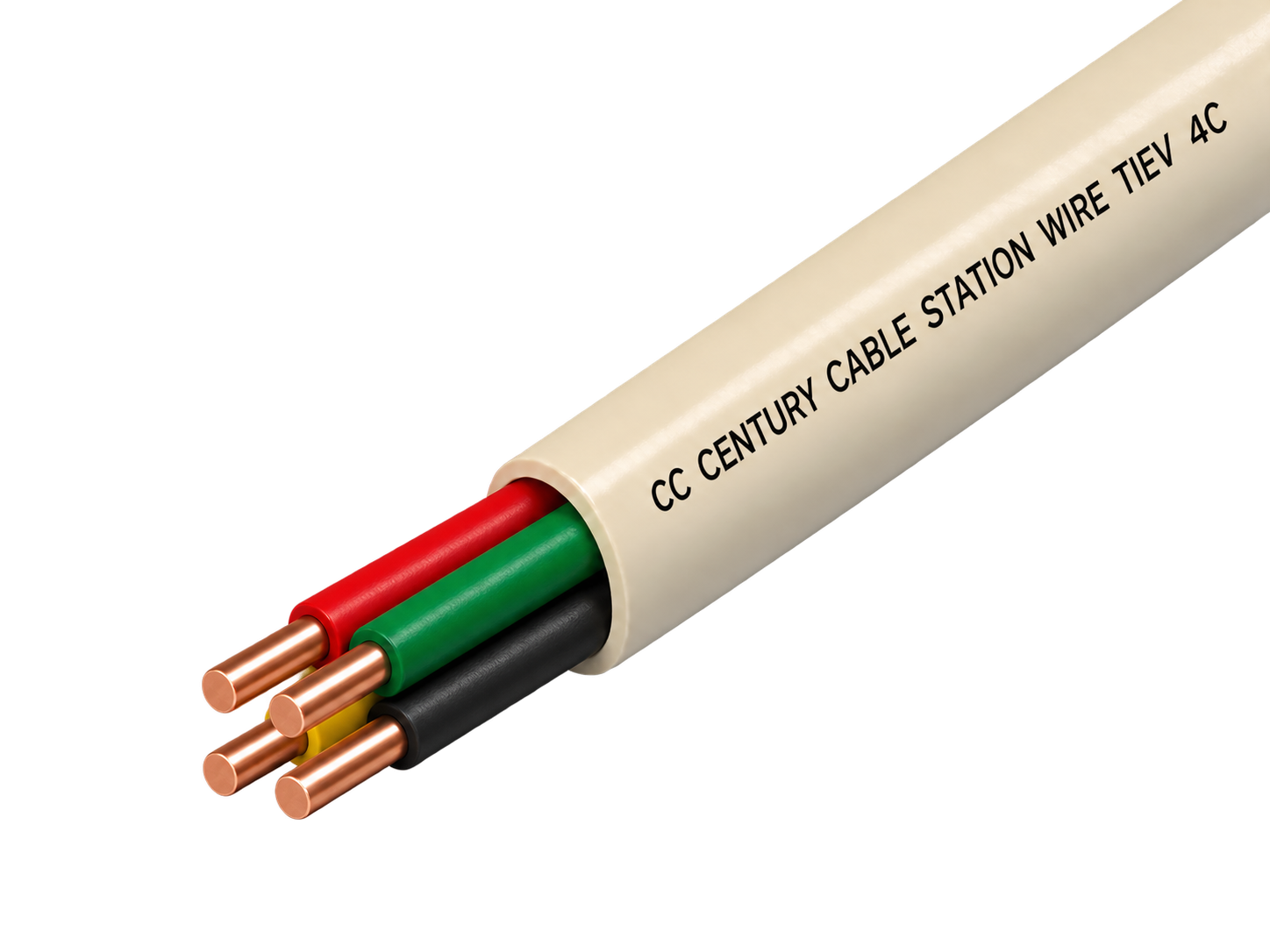

Cable marking: CC CENTURY CABLE STATION WIRE TIEV 4C
Reference Standard: TOT / PDITL.
Installation: In conduit, direct burial, over wall / ceiling.
Applications: Internal / external telephone system interconnection; high-bandwidth video phone systems.
Cable Specifications
| Product Code | Description | Conductor Nom. Dia. (mm) | Conductor Material | Dia. over Insulation (mm) | Insulation Material | No. of Cores | Jacket O.D. (mm) | Standard Packing (m) |
|---|---|---|---|---|---|---|---|---|
| AWG 24 Series | ||||||||
| CC-ST0502 | 2 Cores AWG 24 Station Wire | 0.50 | BC | 0.90 | HDPE | 2 | 2.80 | 100/C, 200/C, 305/S, 500/S |
| CC-ST0504 | 4 Cores AWG 24 Station Wire | 0.50 | BC | 0.90 | HDPE | 4 | 3.20 | 100/C, 200/C, 305/S, 500/S |
| CC-ST0506 | 6 Cores AWG 24 Station Wire | 0.50 | BC | 0.90 | HDPE | 6 | 3.80 | 100/C, 200/C, 305/S, 500/S |
| AWG 22 Series | ||||||||
| CC-ST0652 | 2 Cores AWG 22 Station Wire | 0.65 | BC | 1.15 | HDPE | 2 | 3.30 | 100/C, 200/C, 305/S, 500/S |
| CC-ST0654 | 4 Cores AWG 22 Station Wire | 0.65 | BC | 1.15 | HDPE | 4 | 3.70 | 100/C, 200/C, 305/S, 500/S |
| CC-ST0656 | 6 Cores AWG 22 Station Wire | 0.65 | BC | 1.15 | HDPE | 6 | 4.40 | 100/C, 200/C, 305/S, 500/S |
Notes: "BC" = bare copper; "/C" = coil; "/S" = spool. Other packing lengths are available upon request.
Other numbers of cores and special jacket colors are available upon request.
The specifications are subject to change without prior notice.
