RG SERIES COAXIAL CABLE
Attribute:
RG series coaxial cable, 50 / 52 / 75 Ω, with PE or foam PE dielectric and copper wire braid shielding, for CCTV, CATV, MATV, LAN and two-way radio systems. Available in RG-6/U, RG-8/U, RG-11/U, RG-58/U, RG-59/U, RG-59B/U and RG-179/U.
Categories : COMMUNICATION & COAXIAL CABLES ,
Brand : CC CENTURY CABLE
Share

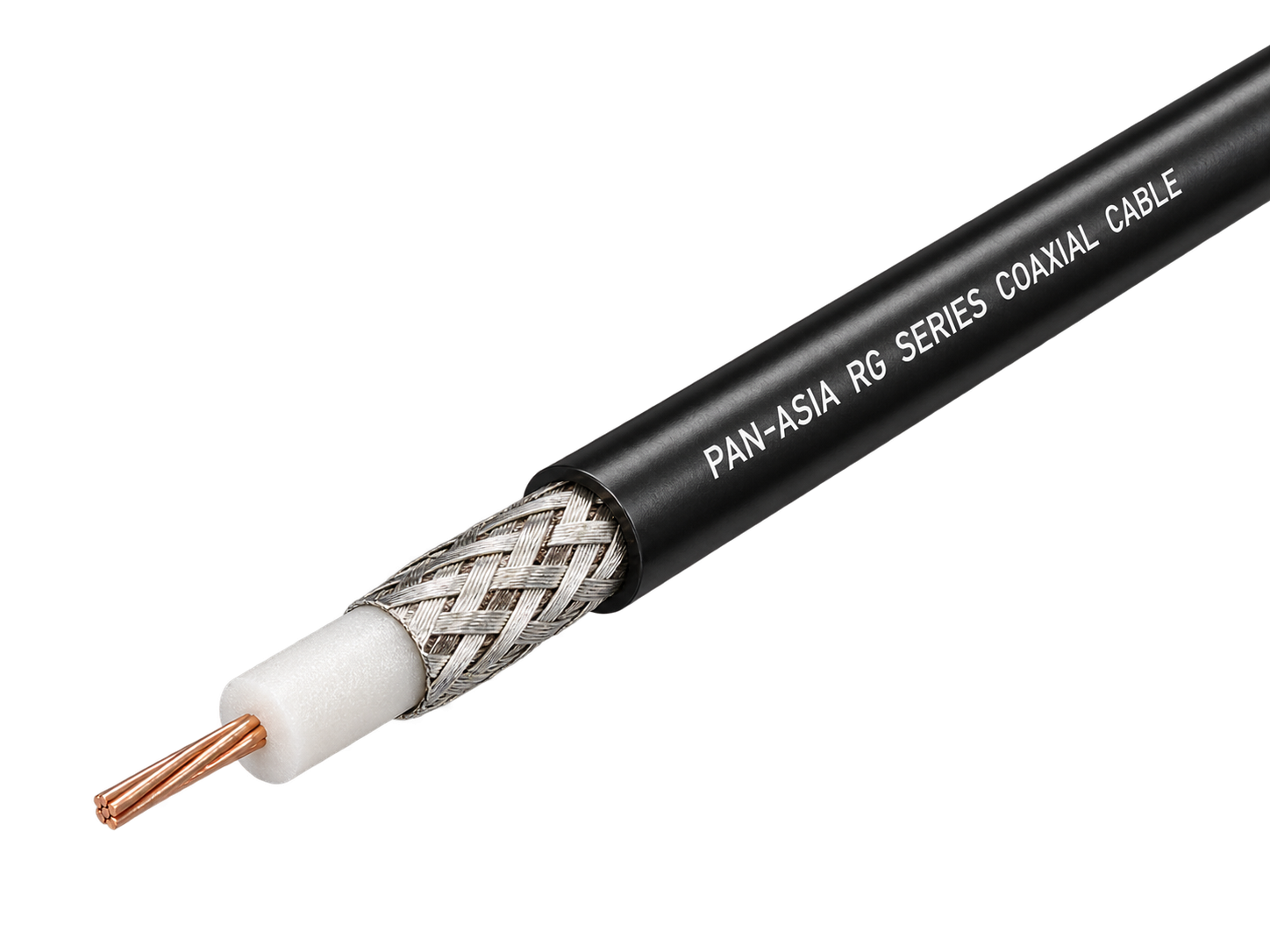

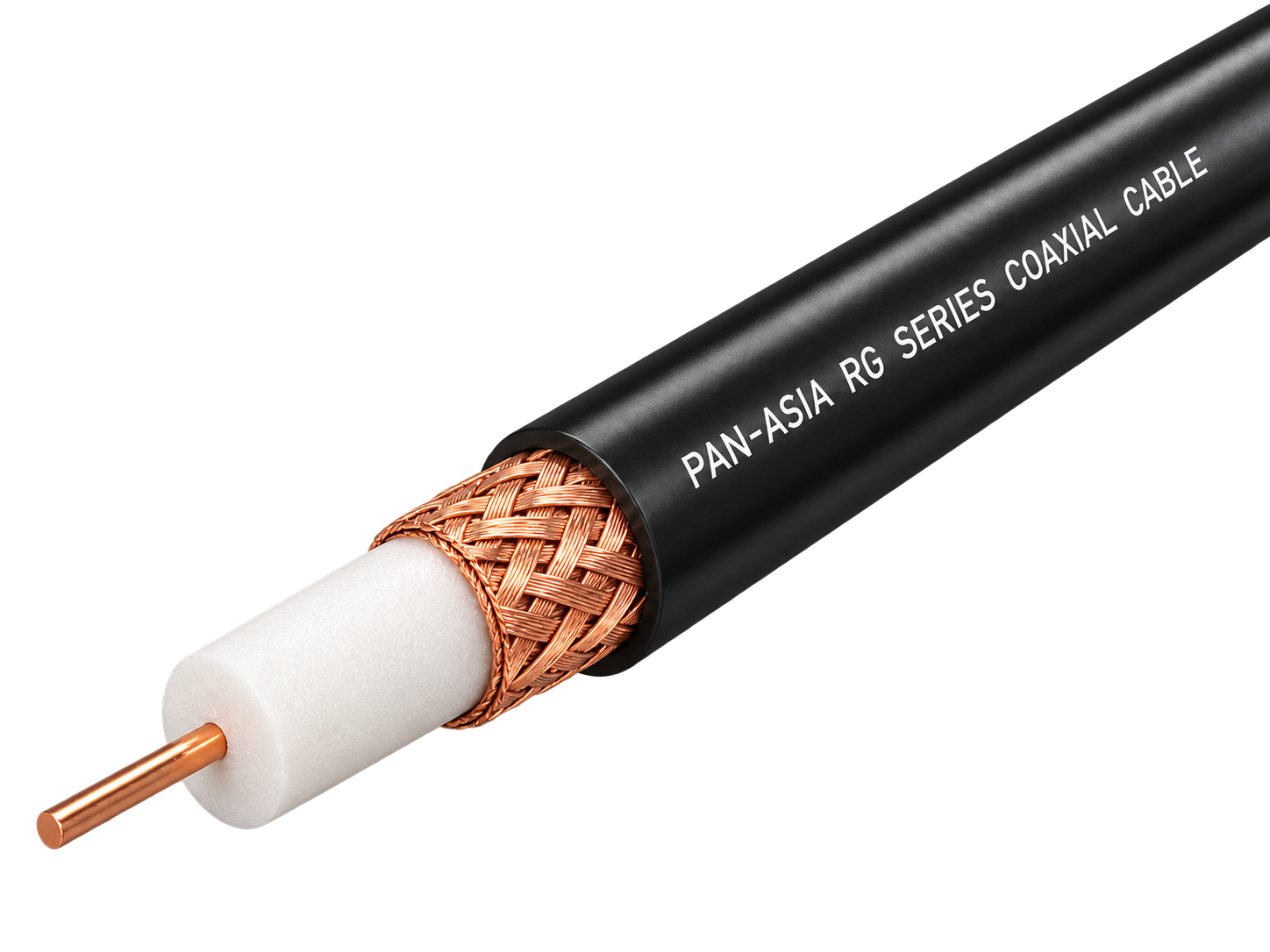

Construction: Centre conductor, dielectric, braided shield (foil + braid on RG-6 / RG-11), PVC jacket.

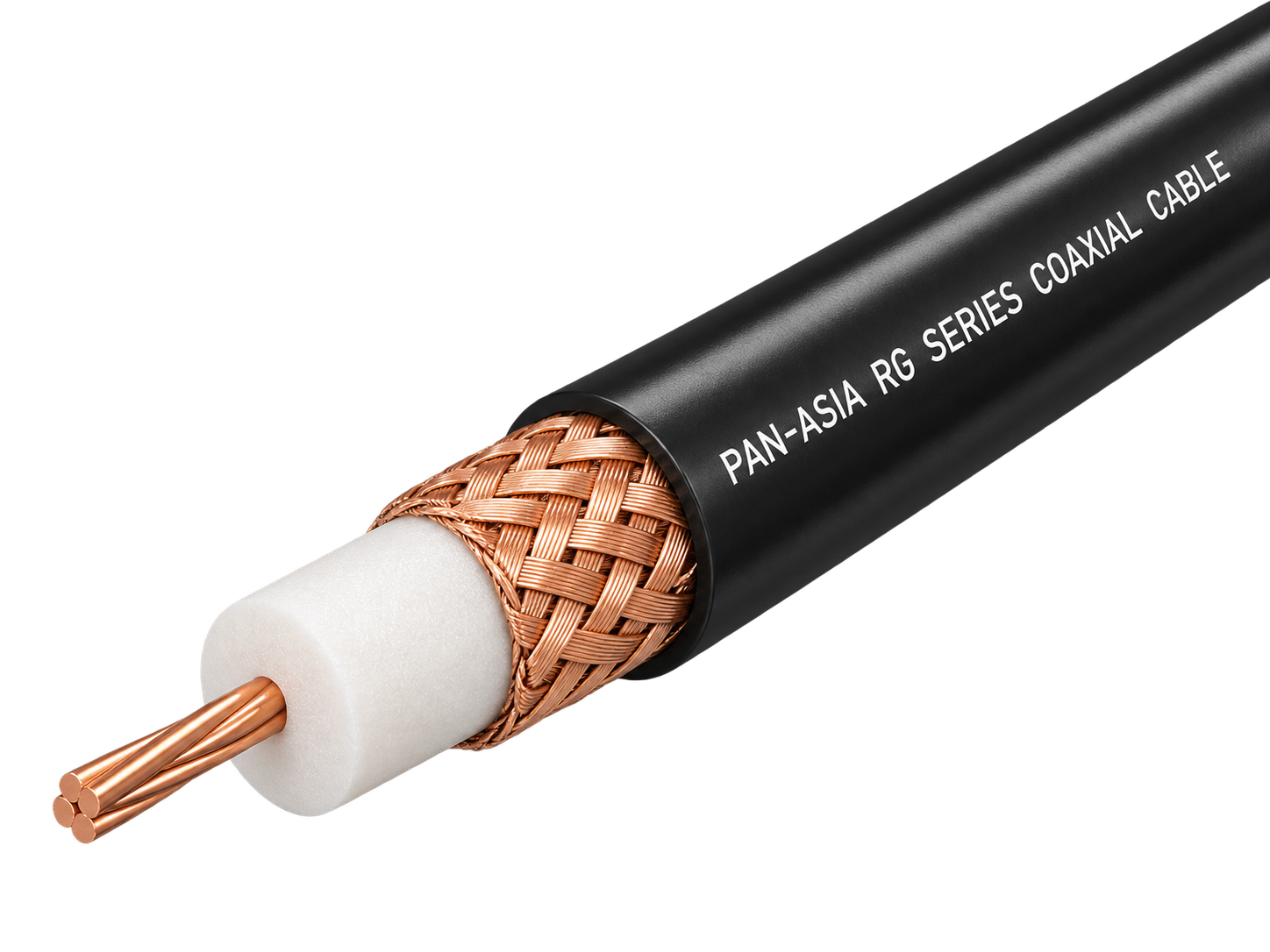

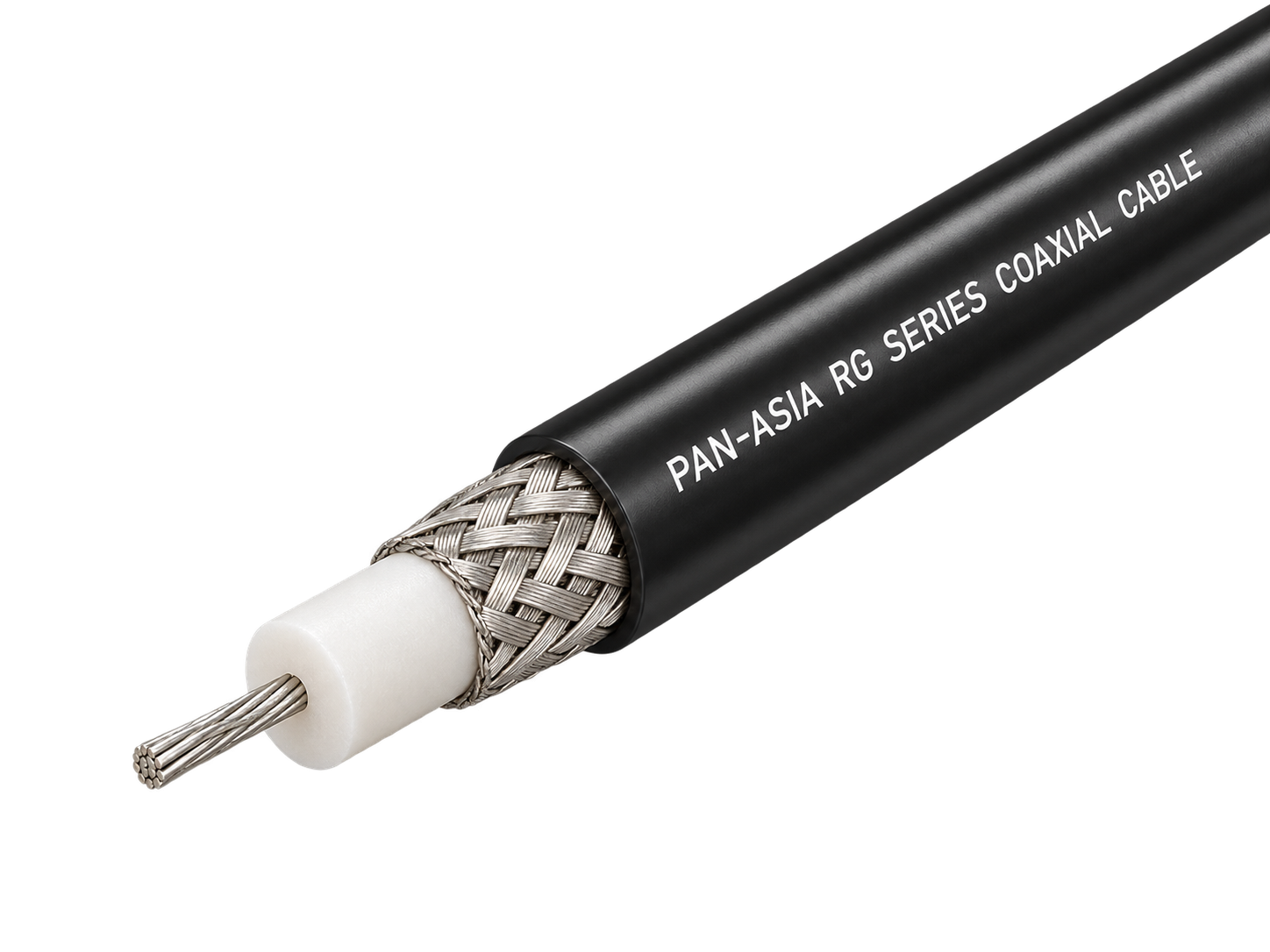

Conductor: Solid or stranded bare copper (BC), tinned copper (TC) or copper-clad steel (CCS).
Dielectric: Solid polyethylene (PE) or gas-injected foam polyethylene (FPE).

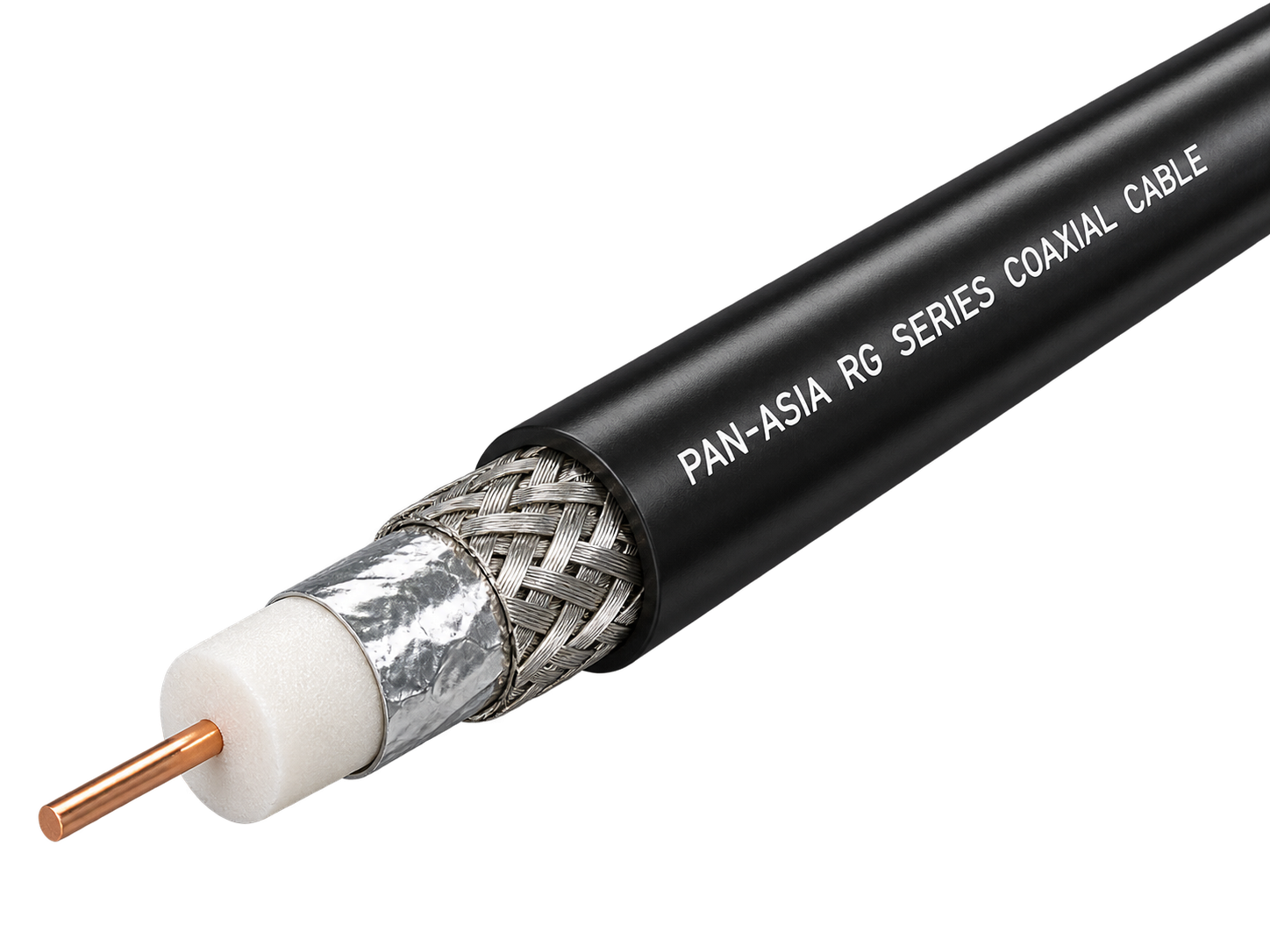

Shield: Bare or tinned copper wire braid; Al/polyester foil + braid on RG-6 and RG-11.
Jacket: PVC, black.
Impedance: 50 Ω, 52 Ω or 75 Ω (± 5 Ω).
Cable marking: PAN-ASIA RG SERIES COAXIAL CABLE
Reference Standard: High-density shielding cable designed and manufactured to US and Japanese RG standards.
Applications: Interconnection of data processing equipment and information systems, LANs, CATV, CCTV, MATV and two-way radio.
Cable Specifications
| Product Code | Centre Conductor No. × Dia. (mm) | Conductor Material | Dia. over Dielectric (mm) | Dielectric Type | Shielding | PVC Jacket Nom. O.D. (mm) |
|---|---|---|---|---|---|---|
| RG-6/U | Impedance 75 ± 5 Ω | ||||||
| CC-RG6/U-10BC-64TC | 1 × 1.02 | BC | 4.70 | FPE | Al/P foil + 64 × 0.12 TCWB | 6.80 |
| CC-RG6/U-10BC-112TC | 1 × 1.02 | BC | 4.70 | FPE | Al/P foil + 112 × 0.12 TCWB | 6.90 |
| CC-RG6/U-10BC-112TCCA | 1 × 1.02 | BC | 4.70 | FPE | Al/P foil + 112 × 0.12 TCCAB | 6.90 |
| CC-RG6/U-10CS-64TC | 1 × 1.02 | CCS | 4.70 | FPE | Al/P foil + 64 × 0.12 TCWB | 6.80 |
| CC-RG6/U-10CS-120TC | 1 × 1.02 | CCS | 4.70 | FPE | Al/P foil + 120 × 0.16 TCWB | 7.00 |
| RG-8/U | Impedance 52 ± 5 Ω | ||||||
| CC-RG8/U-07BC-120BCE | 7 × 0.70 | BC | 7.24 | PE | 120 × 0.14 BCWB | 10.20 |
| CC-RG8/U-07BC-120BC | 7 × 0.70 | BC | 7.24 | PE | 120 × 0.16 BCWB | 10.30 |
| CC-RG8/U-07BC-144BC | 7 × 0.70 | BC | 7.24 | PE | 144 × 0.16 BCWB | 10.30 |
| CC-RG8/U-07BC-168BC | 7 × 0.70 | BC | 7.24 | PE | 168 × 0.16 BCWB | 10.30 |
| CC-RG8/U-07BC-192TC | 7 × 0.70 | BC | 7.24 | PE | 192 × 0.16 TCWB | 10.30 |
| RG-11/U | Impedance 75 ± 5 Ω | ||||||
| CC-RG11/U-16BC-168AL | 1 × 1.63 | CCS | 7.11 | FPE | Al/P foil + 168 × 0.16 ALWB | 10.03 |
| RG-58/U | Impedance 50 ± 5 Ω | ||||||
| CC-RG58/U-08BC-96TC | 1 × 0.80 | BC | 2.95 | PE | 96 × 0.12 TCWB | 4.95 |
| CC-RG58/U-16TC-96TC | 25 × 0.16 | TC | 2.95 | PE | 96 × 0.12 TCWB | 4.95 |
| CC-RG58/U-16TC-112TC | 25 × 0.16 | TC | 2.95 | PE | 112 × 0.12 TCWB | 4.95 |
| CC-RG58/U-16TC-128TC | 25 × 0.16 | TC | 2.95 | PE | 128 × 0.12 TCWB | 4.95 |
| RG-59/U | Impedance 75 ± 5 Ω | ||||||
| CC-RG59/U-80BC-128BC | 1 × 0.80 | BC | 3.66 | FPE | 128 × 0.12 BCWB | 6.20 |
| RG-59B/U | Impedance 75 ± 5 Ω | ||||||
| CC-RG59B/U-60BC-128BC | 1 × 0.60 | BC | 3.70 | PE | 128 × 0.12 BCWB | 6.20 |
| RG-179/U | Impedance 75 ± 5 Ω | ||||||
| CC-RG179/U-512-80TC | 5 × 0.12 | BC | 1.50 | PE | 80 × 0.12 TCWB | 2.90 |
Nominal Attenuation (dB/100 m)
| Cable Type | 50 MHz | 100 MHz | 200 MHz | 400 MHz | 700 MHz | 900 MHz | 1000 MHz |
|---|---|---|---|---|---|---|---|
| RG-6/U | 5.00 | 7.00 | 9.75 | 13.95 | 19.30 | 21.45 | 23.40 |
| RG-8/U | 5.60 | 7.75 | 11.25 | 16.50 | 24.25 | 28.10 | 31.25 |
| RG-11/U | 3.21 | 4.23 | 6.04 | 8.79 | 12.04 | 13.94 | 14.83 |
| RG-58/U | 15.95 | 17.20 | 31.89 | 40.37 | 59.63 | 70.21 | 75.45 |
| RG-59/U | 6.10 | 8.42 | 11.72 | 16.77 | 22.53 | 25.61 | 26.98 |
| RG-59B/U | 8.35 | 12.25 | 17.86 | 26.46 | 36.98 | 43.09 | 45.73 |
| RG-179/U | 16.61 | 23.93 | 34.69 | 50.77 | 69.65 | 80.54 | 85.65 |
Notes: BC = bare copper; TC = tinned copper; CCS = copper-clad steel; PE = solid polyethylene; FPE = gas-injected foam polyethylene; Al/P foil = aluminium/polyester foil.
TCWB / BCWB / ALWB = tinned copper / bare copper / aluminium wire braid (no. of wires × wire dia. in mm); TCCAB = tinned copper-clad aluminium braid.
Attenuation values are nominal, in dB per 100 m.
The specifications are subject to change without prior notice.
