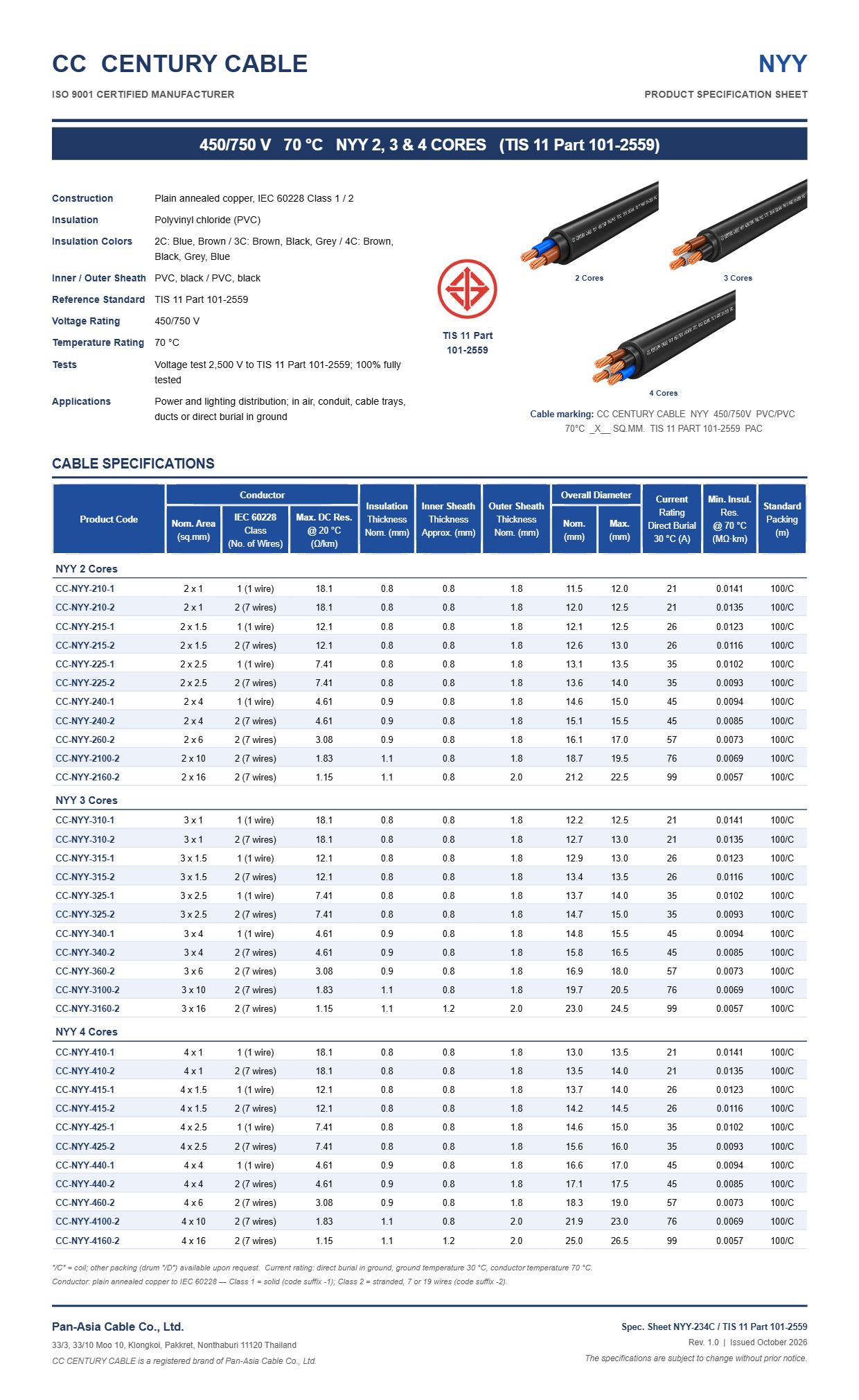

NYY 2, 3 & 4 CORES
Attribute:
450/750 V, 70°C multi-core power cable (2, 3 or 4 cores) with plain annealed copper conductors (IEC 60228 Class 1/2), PVC insulated with PVC inner and outer sheath, compliant with TIS 11 Part 101-2559, for power and lighting distribution in air, conduit, cable trays, ducts or direct burial.
Categories : BUILDING & ELECTRICAL INSTALLATION WIRES ,
Brand : CC CENTURY CABLE
Share
Construction: Plain annealed copper, IEC 60228 Class 1 / 2.
Insulation: Polyvinyl chloride (PVC).
Insulation Colors: 2C: Blue, Brown / 3C: Brown, Black, Grey / 4C: Brown, Black, Grey, Blue.
Inner / Outer Sheath: PVC, black / PVC, black.
Reference Standard: TIS 11 Part 101-2559.
Voltage Rating: 450/750 V.
Temperature Rating: 70 °C.
Tests: Voltage test 2,500 V to TIS 11 Part 101-2559; 100% fully tested.

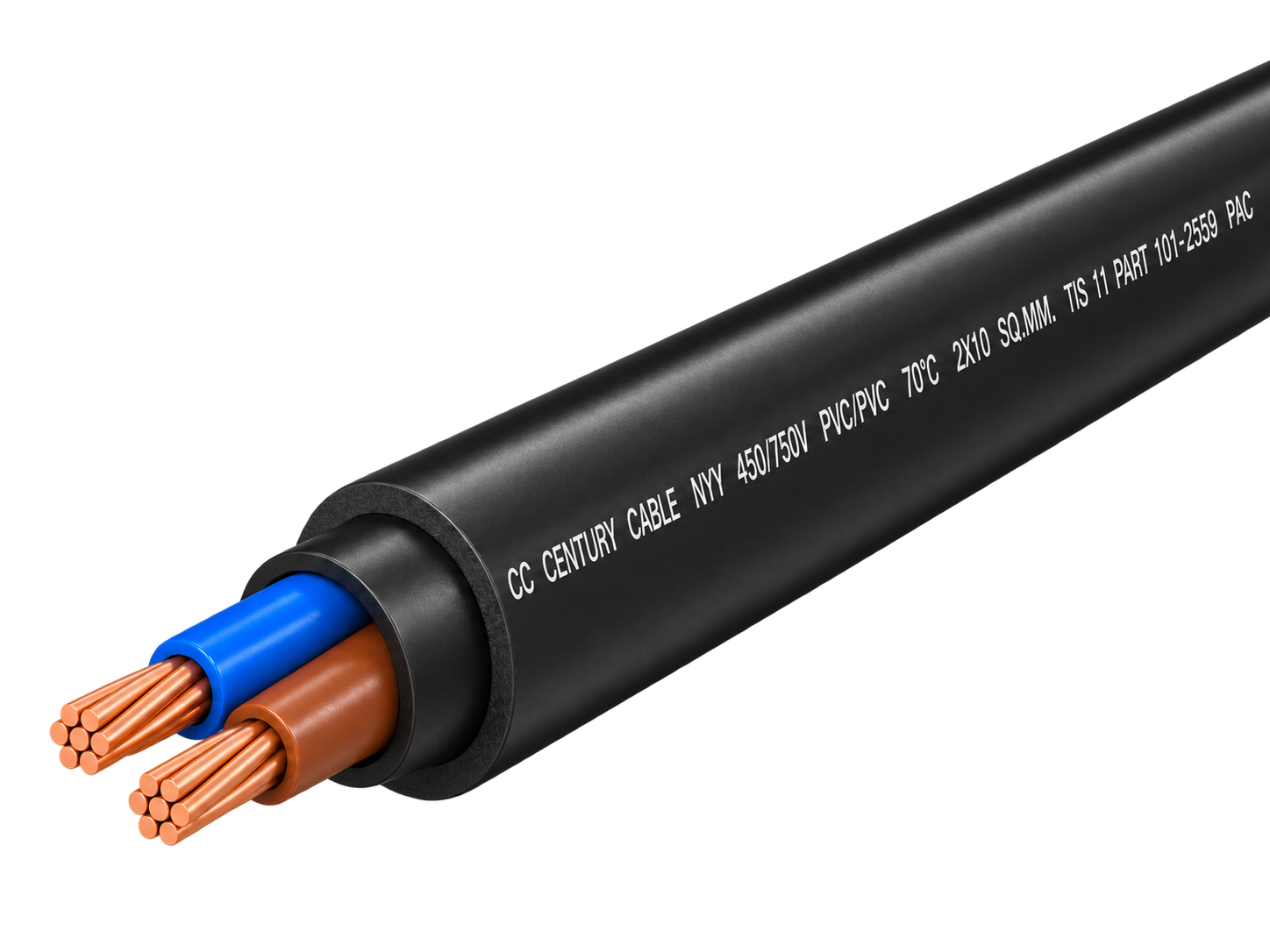

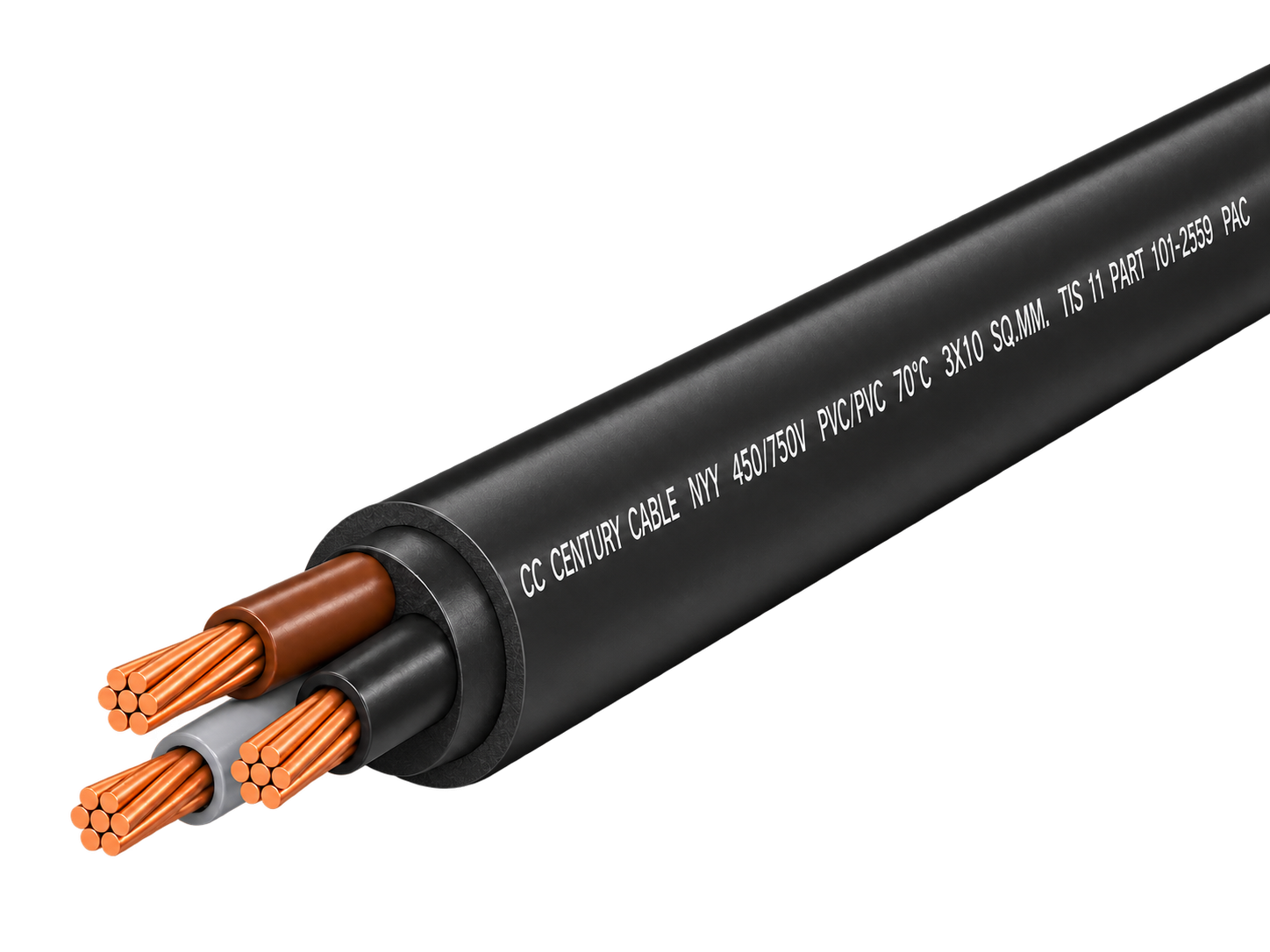

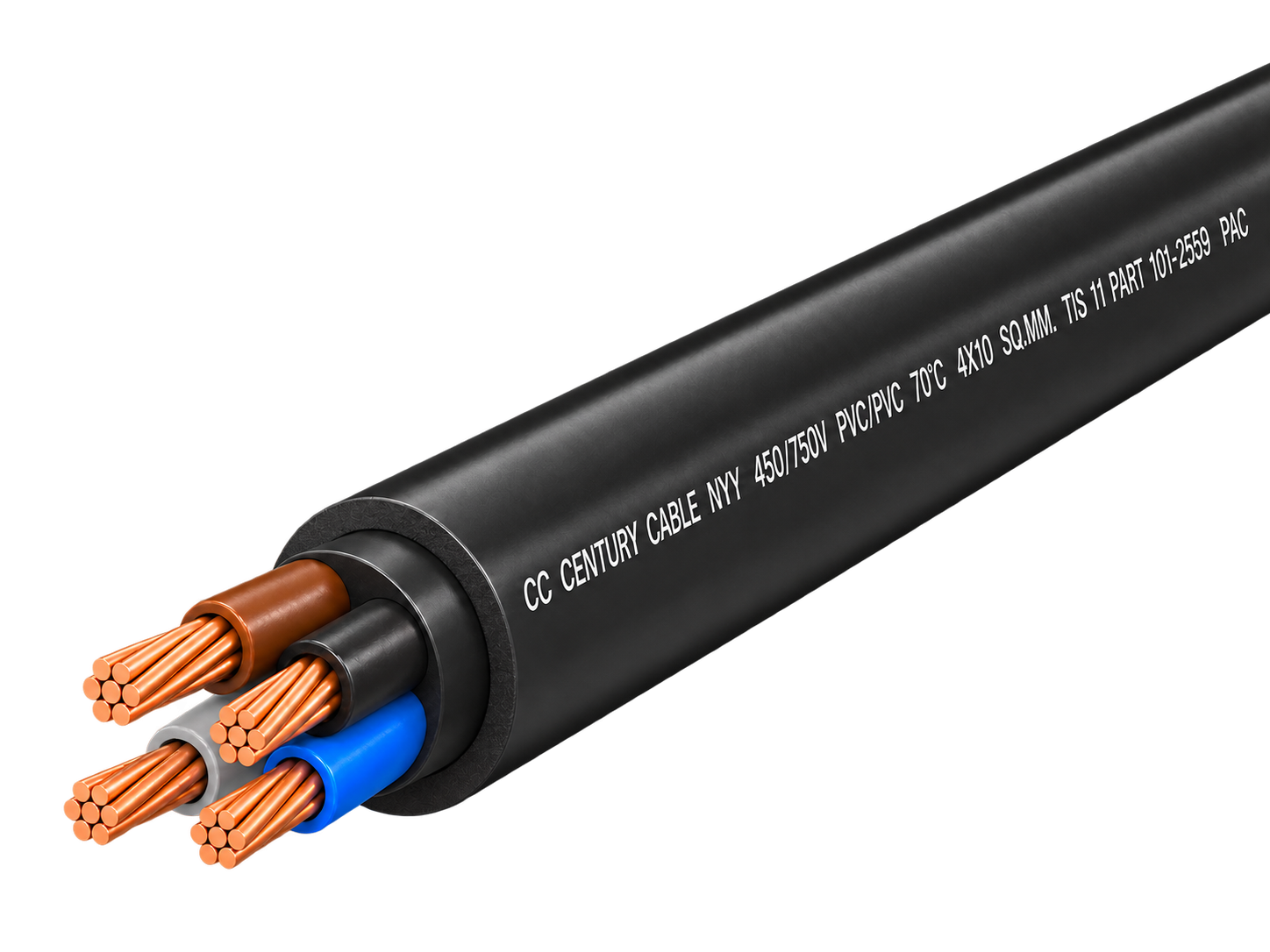

Cable marking: CC CENTURY CABLE NYY 450/750V PVC/PVC 70°C _X__ SQ.MM. TIS 11 PART 101-2559 PAC
Applications: Power and lighting distribution; in air, conduit, cable trays, ducts or direct burial in ground.
Cable Specifications
| Product Code | Nom. Area (sq.mm) | IEC 60228 Class (No. of Wires) | Max. DC Res. @ 20 °C (Ω/km) | Insulation Thickness Nom. (mm) | Inner Sheath Thickness Approx. (mm) | Outer Sheath Thickness Nom. (mm) | Overall Dia. Nom. (mm) | Overall Dia. Max. (mm) | Current Rating Direct Burial 30 °C (A) | Min. Insul. Res. @ 70 °C (MΩ·km) | Standard Packing (m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NYY 2 Cores | |||||||||||
| CC-NYY-210-1 | 2 x 1 | 1 (1 wire) | 18.1 | 0.8 | 0.8 | 1.8 | 11.5 | 12.0 | 21 | 0.0141 | 100/C |
| CC-NYY-210-2 | 2 x 1 | 2 (7 wires) | 18.1 | 0.8 | 0.8 | 1.8 | 12.0 | 12.5 | 21 | 0.0135 | 100/C |
| CC-NYY-215-1 | 2 x 1.5 | 1 (1 wire) | 12.1 | 0.8 | 0.8 | 1.8 | 12.1 | 12.5 | 26 | 0.0123 | 100/C |
| CC-NYY-215-2 | 2 x 1.5 | 2 (7 wires) | 12.1 | 0.8 | 0.8 | 1.8 | 12.6 | 13.0 | 26 | 0.0116 | 100/C |
| CC-NYY-225-1 | 2 x 2.5 | 1 (1 wire) | 7.41 | 0.8 | 0.8 | 1.8 | 13.1 | 13.5 | 35 | 0.0102 | 100/C |
| CC-NYY-225-2 | 2 x 2.5 | 2 (7 wires) | 7.41 | 0.8 | 0.8 | 1.8 | 13.6 | 14.0 | 35 | 0.0093 | 100/C |
| CC-NYY-240-1 | 2 x 4 | 1 (1 wire) | 4.61 | 0.9 | 0.8 | 1.8 | 14.6 | 15.0 | 45 | 0.0094 | 100/C |
| CC-NYY-240-2 | 2 x 4 | 2 (7 wires) | 4.61 | 0.9 | 0.8 | 1.8 | 15.1 | 15.5 | 45 | 0.0085 | 100/C |
| CC-NYY-260-2 | 2 x 6 | 2 (7 wires) | 3.08 | 0.9 | 0.8 | 1.8 | 16.1 | 17.0 | 57 | 0.0073 | 100/C |
| CC-NYY-2100-2 | 2 x 10 | 2 (7 wires) | 1.83 | 1.1 | 0.8 | 1.8 | 18.7 | 19.5 | 76 | 0.0069 | 100/C |
| CC-NYY-2160-2 | 2 x 16 | 2 (7 wires) | 1.15 | 1.1 | 0.8 | 2.0 | 21.2 | 22.5 | 99 | 0.0057 | 100/C |
| NYY 3 Cores | |||||||||||
| CC-NYY-310-1 | 3 x 1 | 1 (1 wire) | 18.1 | 0.8 | 0.8 | 1.8 | 12.2 | 12.5 | 21 | 0.0141 | 100/C |
| CC-NYY-310-2 | 3 x 1 | 2 (7 wires) | 18.1 | 0.8 | 0.8 | 1.8 | 12.7 | 13.0 | 21 | 0.0135 | 100/C |
| CC-NYY-315-1 | 3 x 1.5 | 1 (1 wire) | 12.1 | 0.8 | 0.8 | 1.8 | 12.9 | 13.0 | 26 | 0.0123 | 100/C |
| CC-NYY-315-2 | 3 x 1.5 | 2 (7 wires) | 12.1 | 0.8 | 0.8 | 1.8 | 13.4 | 13.5 | 26 | 0.0116 | 100/C |
| CC-NYY-325-1 | 3 x 2.5 | 1 (1 wire) | 7.41 | 0.8 | 0.8 | 1.8 | 13.7 | 14.0 | 35 | 0.0102 | 100/C |
| CC-NYY-325-2 | 3 x 2.5 | 2 (7 wires) | 7.41 | 0.8 | 0.8 | 1.8 | 14.7 | 15.0 | 35 | 0.0093 | 100/C |
| CC-NYY-340-1 | 3 x 4 | 1 (1 wire) | 4.61 | 0.9 | 0.8 | 1.8 | 14.8 | 15.5 | 45 | 0.0094 | 100/C |
| CC-NYY-340-2 | 3 x 4 | 2 (7 wires) | 4.61 | 0.9 | 0.8 | 1.8 | 15.8 | 16.5 | 45 | 0.0085 | 100/C |
| CC-NYY-360-2 | 3 x 6 | 2 (7 wires) | 3.08 | 0.9 | 0.8 | 1.8 | 16.9 | 18.0 | 57 | 0.0073 | 100/C |
| CC-NYY-3100-2 | 3 x 10 | 2 (7 wires) | 1.83 | 1.1 | 0.8 | 1.8 | 19.7 | 20.5 | 76 | 0.0069 | 100/C |
| CC-NYY-3160-2 | 3 x 16 | 2 (7 wires) | 1.15 | 1.1 | 1.2 | 2.0 | 23.0 | 24.5 | 99 | 0.0057 | 100/C |
| NYY 4 Cores | |||||||||||
| CC-NYY-410-1 | 4 x 1 | 1 (1 wire) | 18.1 | 0.8 | 0.8 | 1.8 | 13.0 | 13.5 | 21 | 0.0141 | 100/C |
| CC-NYY-410-2 | 4 x 1 | 2 (7 wires) | 18.1 | 0.8 | 0.8 | 1.8 | 13.5 | 14.0 | 21 | 0.0135 | 100/C |
| CC-NYY-415-1 | 4 x 1.5 | 1 (1 wire) | 12.1 | 0.8 | 0.8 | 1.8 | 13.7 | 14.0 | 26 | 0.0123 | 100/C |
| CC-NYY-415-2 | 4 x 1.5 | 2 (7 wires) | 12.1 | 0.8 | 0.8 | 1.8 | 14.2 | 14.5 | 26 | 0.0116 | 100/C |
| CC-NYY-425-1 | 4 x 2.5 | 1 (1 wire) | 7.41 | 0.8 | 0.8 | 1.8 | 14.6 | 15.0 | 35 | 0.0102 | 100/C |
| CC-NYY-425-2 | 4 x 2.5 | 2 (7 wires) | 7.41 | 0.8 | 0.8 | 1.8 | 15.6 | 16.0 | 35 | 0.0093 | 100/C |
| CC-NYY-440-1 | 4 x 4 | 1 (1 wire) | 4.61 | 0.9 | 0.8 | 1.8 | 16.6 | 17.0 | 45 | 0.0094 | 100/C |
| CC-NYY-440-2 | 4 x 4 | 2 (7 wires) | 4.61 | 0.9 | 0.8 | 1.8 | 17.1 | 17.5 | 45 | 0.0085 | 100/C |
| CC-NYY-460-2 | 4 x 6 | 2 (7 wires) | 3.08 | 0.9 | 0.8 | 1.8 | 18.3 | 19.0 | 57 | 0.0073 | 100/C |
| CC-NYY-4100-2 | 4 x 10 | 2 (7 wires) | 1.83 | 1.1 | 0.8 | 2.0 | 21.9 | 23.0 | 76 | 0.0069 | 100/C |
| CC-NYY-4160-2 | 4 x 16 | 2 (7 wires) | 1.15 | 1.1 | 1.2 | 2.0 | 25.0 | 26.5 | 99 | 0.0057 | 100/C |
"/C" = coil; other packing (drum "/D") available upon request. Current rating: direct burial in ground, ground temperature 30 °C, conductor temperature 70 °C. Conductor: plain annealed copper to IEC 60228 — Class 1 = solid (code suffix -1); Class 2 = stranded, 7 or 19 wires (code suffix -2). The specifications are subject to change without prior notice.
